Full Hydraulic Free Forging Electro-Hydraulic Hammer Manufacturer Equipment Price in China

Fully hydraulic closed die forging hammer is driven by hydraulic oil without nitrogen gas, is mainly applied in many kinds of closed die forgings,such as automobile forgings,tractor forgings,agricultural equipment forgings, oil and gas industry die forgings, electrical power station die forgings and industrial forgings

The full hydraulic free forging hammer realizes the blow by controlling the upper and lower oil pressure of the piston. The blowing force is large, the speed is fast, and the failure is less.

fully hydraulic open die forging hammer is fully hydraulic drive open die forging hammer, there single arm type, arch type and bridge type etc structure type. The system principle is the below chamber of hammer rod piston connect the high pressure oil all the time,realize hit through control the upper and below oil pressure of piston of piston.It’s used for open die forging.

Full hydraulic free forging hammers are widely used in machinery, steel, non-ferrous metallurgy, railway locomotives, ships, wind power, nuclear power, aerospace and other industries, and are used for non-ferrous and ferrous metals and other free forging ingots.

Electro-hydraulic free forging hammers are widely accepted by modern free forging plants and are suitable for the production of various free forgings, such as shaft forgings, ring forgings, gear blanks, flanges, etc.

The electro hydraulic forging hammer can save above 80-90% energy than steam hammer, which is the common understanding of personage of machinery industry. It doesn’t need boiler, removes smoke pollution, this improves worker’s working condition, so that the electro hydraulic forging is a product protecting environment, a replaced product of steam hammer.

Hydraulic free forging hammers are mainly used in general forging projects, such as auto parts forgings, motorcycle parts forgings, hardware forgings, construction forgings, flanges, etc.

Electro-hydraulic hammer is a new type of forging equipment that is energy-saving and environmentally friendly. It is divided into single-arm electro-hydraulic hammer and double-arm electro-hydraulic hammer. The working principle is the same as that of electro-hydraulic power head, but the body is different from the original steam hammer. The guide of the hammer head is changed to “X” guide。

The full hydraulic free forging hammer refers to the free forging hammer whose strike and return stroke of the hammer head are hydraulically driven. The principle of the system is that the lower chamber of the hammer rod piston is usually connected with high-pressure oil, and the strike and return stroke are realized by controlling the oil pressure of the upper chamber of the piston. The full hydraulic free forging hammer has the advantages of sufficient energy, fast frequency, low failure rate, and can realize hanging hammer at any position. It is suitable for producing various types of free forgings.

The main advantage of pressure forging compared to drop forging is its ability to deform the entire workpiece. Drop hammer forging generally deforms only the surfaces of the workpiece in contact with the hammer and anvil; the interior of the workpiece will remain relatively undeformed.

A full hydraulic forging hammer is a new type of forging equipment that is energy-saving and environmentally friendly. It is divided into a single-arm hydraulic forging hammer and a double-arm hydraulic forging hammer.

Fully Hydraulic Open Die Forging Hammer
Hydraulic C type Open Die Forging Hammer

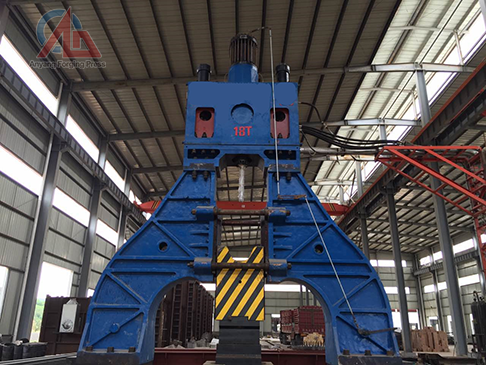

The double-arm (arch type) free forging electro-hydraulic hammer converts the potential energy of the hammer head into the kinetic energy of the hammer head, thereby striking the forging and performing work.

Anyang Forging Press C66Y series arch free forging electro-hydraulic hammer is supported by two left and right fuselage with arch, as the name suggests, arch electro-hydraulic hammer. It consists of power head, anvil, fuselage, hydraulic station and other parts.

Design and manufacture a pneumatic utility power hammer with outstanding durability and user ergonomics, while making it affordable for hobbyists and professional blacksmiths alike. This also means that expensive foundations are not required.

The principle of the fully hydraulic free forging electro-hydraulic hammer determines that it has sufficient energy, fast frequency, no soaking mold, and low failure rate.
