Forging hammer arch type electro-hydraulic hammer single-arm type electro-hydraulic hammer production forging

Electro-hydraulic hammer is a new type of forging equipment that is energy-saving and environmentally friendly. The guide of the hammer head is changed to “X” guide rail, which can adjust the guide rail clearance to a very low level, greatly improving the guiding accuracy of the electro-hydraulic hammer, improving the quality of forgings, extending the Hammer life.

A full hydraulic forging hammer is a new type of forging equipment that is energy-saving and environmentally friendly. It is divided into a single-arm hydraulic forging hammer and a double-arm hydraulic forging hammer.

Fully Hydraulic Open Die Forging Hammer
Hydraulic C type Open Die Forging Hammer

The full hydraulic free forging hammer refers to the free forging hammer whose strike and return stroke of the hammer head are hydraulically driven. The principle of the system is that the lower chamber of the hammer rod piston is usually connected with high-pressure oil, and the strike and return stroke are realized by controlling the oil pressure of the upper chamber of the piston. The full hydraulic free forging hammer has the advantages of sufficient energy, fast frequency, low failure rate, and can realize hanging hammer at any position. It is suitable for producing various types of free forgings.

Fully hydraulic closed die forging hammer is driven by hydraulic oil without nitrogen gas, is mainly applied in many kinds of closed die forgings,such as automobile forgings,tractor forgings,agricultural equipment forgings, oil and gas industry die forgings, electrical power station die forgings and industrial forgings

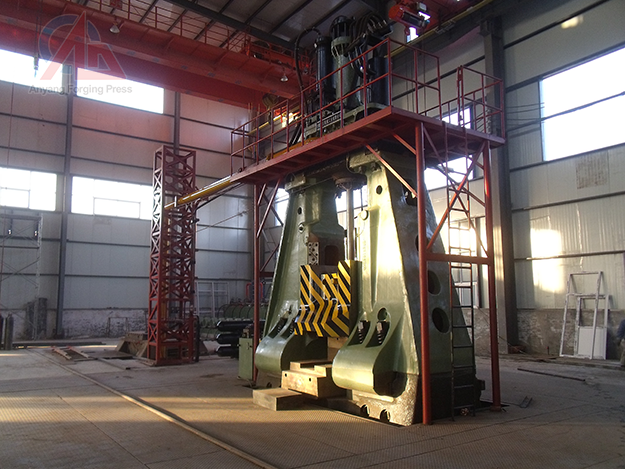

The double-arm (arch type) free forging electro-hydraulic hammer converts the potential energy of the hammer head into the kinetic energy of the hammer head, thereby striking the forging and performing work.

At present, the all-hydraulic electro-hydraulic hammer has been applied to various specifications and series of die forging hammers and free forging hammers. Practice has proved that the all-hydraulic electro-hydraulic hammer is an ideal upgrade product for the hydraulic-pneumatic hammer.

Electro-hydraulic hammer is a new type of forging equipment that is energy-saving and environmentally friendly. It is divided into single-arm electro-hydraulic hammer and double-arm electro-hydraulic hammer. The working principle is the same as that of electro-hydraulic power head, but the body is different from the original steam hammer. The guide of the hammer head is changed to “X” guide。

A fully hydraulic open die forging hammer and forging manipulator are shown in this video.
In addition to providing this fully hydraulic open die forging hammer and forging manipulator, we can also convert the old open die hammer to fully hydraulic.

The full hydraulic free forging hammer refers to the free forging hammer whose strike and return stroke of the hammer head are hydraulically driven. The principle of the system is that the lower chamber of the hammer rod piston is usually connected with high-pressure oil, and the strike and return stroke are realized by controlling the oil pressure of the upper chamber of the piston. The full hydraulic free forging hammer has the advantages of sufficient energy, fast frequency, low failure rate, and can realize hanging hammer at any position. It is suitable for producing various types of free forgings.

Electro-hydraulic Open Die Forging Hammer is specially desired for general forging works, which is widely accepted in modern open die forging plants, suitable for producing various open die forgings.

(C66Y) Fully Hydraulic Forging Hammer is a kind of electric-hydraulic hammer operated by follow-up valve and drove by fully hydraulic driving system.

Hydraulic free forging hammers are mainly used in general forging projects, such as auto parts forgings, motorcycle parts forgings, hardware forgings, construction forgings, flanges, etc.

The forging hammer belongs to a kind of free forging equipment. It is a forging machine that uses the kinetic energy generated by the falling motion of the hammer to continuously hit the workpiece blank to produce plastic deformation.
