Electric Screw Press (J58K)

J58K series electric screw press / suitable for all kinds of precision forging, sizing, precision pressing, leveling and other processes.

The Electric Screw Forging Press is a kind of forging equipment with strong technological applicability, which takes into account the dual properties of forging hammer and press and has the characteristics of simple structure, small volume, and short transmission chain.
A friction Forging Press is a kind of screw press with a friction drive, also known as a double disc friction press.

Electric screw press is not only a forging equipment with strong process applicability, but also an environmentally friendly and energy-saving precision forming equipment

J58K series electric screw presses are suitable for various precision forging, sizing, precision pressing, leveling and other processes.

Electric screw press is an energy-saving precision forging press equipment. No mechanical transmission, direct drive by servo motor, high transmission efficiency, low failure rate, fast motor speed, large torque, digital control of energy release, and can meet various process requirements for forging strikes.

The electric screw press is a new type of forging equipment evolved by optimizing the transmission system on the basis of the principle of the friction press.

The Scope and Characteristics of the Screw Press Forging

Electric screw presses are suitable for forging various die forgings, such as turbine blades and special bolts in the aviation industry, engine valves, differential gears, connecting rods, claw poles in the automotive industry, and surgical forceps in the medical industry. With the development of science and technology, various industries have higher and higher requirements for the precision of die forgings. Compared with traditional die forging equipment, an electric screw press is ideal equipment for producing precision die forgings.

J58K series electric screw press has strong technological adaptability, remarkable energy saving and environmental protection, and high degree of automation. It is not only suitable for hot forging, but also suitable for precision forging and finishing; at the same time, it is suitable for the welding process of stainless steel double bottom pot, and the precision forging of titanium alloy blades or other blades.

Electric screw press is widely used for forging parts in the field of machine, automobile, hardware, coal machinery and aerospace, it can be used for die forging, precision forging, trimming, calibration processes, it is one kind of popular forging equipment.

The Screw Press belongs to closed die forging equipment. Die forgings are widely used in automobiles, railway vehicles, construction machinery, national defense, aviation, and other fields.
In the development stage of the screw Press, there are four main transmission forms: Friction Screw Press, Hydraulic Screw Press, Clutch Screw Press, and Electric Screw Press.

Anyang Forging Press is a new generation of intelligent electric screw press with more intelligent control system, better stiffness and strength, and better forging accuracy.

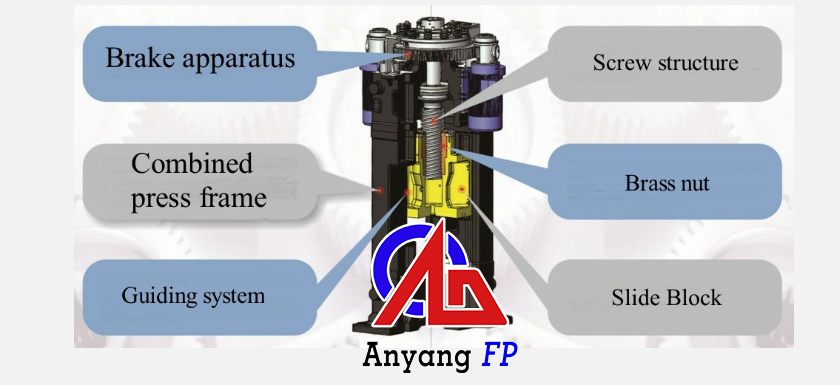

The sliding stroke of the electric screw press adopts the positioning form of long slider and long guide rail to achieve high precision and strong anti-overload and unbalanced load capacity.

With the change of product structure and the continuous improvement of quality, it is also faced with the huge pressure of environmental protection and rising labor costs. In order to improve the competitiveness of enterprises, advanced equipment and technology must be used. This provides a new opportunity for the development of Electric Screw Forging Presses. Electric Screw Forging press will be developed in a heavy and intelligent direction.

The screw press is a machine that can convert the rotational energy of the flywheel into the up and down motion of the mold to do work. The origin of its earliest structure comes from the ancient printing press. Because the rotational energy can bring great energy, but the rotational energy of the flywheel must pass the screw device (screw nut) to transmit the force to the mold, which is affected by the action force and the reaction force, making the fuselage, screw, nut, etc. Force-sensitive parts are also affected by the closing force, so screw presses are especially suitable for high-energy forming machines, but the force is limited.

1. According to the forging method: warm forging, hot forging, cold forging of thin forgings, powder metallurgy forging, straightening processing, combined casting, and forging.
2. According to forging material: all steel including stainless steel, aluminum alloy, titanium, magnesium, brass, copper, etc.

The electric screw press adopts gear transmission mode. The characteristics of this transmission mode are: special motor, high speed and low torque, different tonnage presses are equipped with special motors of different powers, easy to replace motor faults, simple maintenance, and good motor performance. Guide bush wear is not affected. After years of continuous improvement and innovation, the efficiency of electric screw presses has been greatly improved

J58K Series Electric Screw Press/suitable for all kinds of precision forging, sizing, precision pressing, calibration and leveling, etc processes. The hitting energy can be accurately set, the stroke is short, and the energy is stable.
