Double arm open die hot forging hammer export price in Russia

(C66Y) Fully Hydraulic Forging Hammer is a kind of electric-hydraulic hammer operated by follow-up valve and drove by fully hydraulic driving system.

The full hydraulic free forging hammer realizes the blow by controlling the upper and lower oil pressure of the piston. The blowing force is large, the speed is fast, and the failure is less.

The double-arm (arch type) free forging electro-hydraulic hammer converts the potential energy of the hammer head into the kinetic energy of the hammer head, thereby striking the forging and performing work.

At present, the all-hydraulic electro-hydraulic hammer has been applied to various specifications and series of die forging hammers and free forging hammers. Practice has proved that the all-hydraulic electro-hydraulic hammer is an ideal upgrade product for the hydraulic-pneumatic hammer.

The full hydraulic free forging hammer refers to the free forging hammer whose strike and return stroke of the hammer head are hydraulically driven. The principle of the system is that the lower chamber of the hammer rod piston is usually connected with high-pressure oil, and the strike and return stroke are realized by controlling the oil pressure of the upper chamber of the piston. The full hydraulic free forging hammer has the advantages of sufficient energy, fast frequency, low failure rate, and can realize hanging hammer at any position. It is suitable for producing various types of free forgings.

The Fully Hydraulic Open Die Forging Hammer model in this video is C66Y-175KJ 5Ton. There are single arm types, arch types, bridge types, etc structure types with the C66Y series fully hydraulic open die forging hammer.

The full hydraulic free forging hammer has the advantages of sufficient energy, fast frequency, low failure rate, and can realize hanging hammer at any position. It is suitable for producing various types of free forgings.

Electro-hydraulic free forging hammers are widely accepted by modern free forging plants and are suitable for the production of various free forgings, such as shaft forgings, ring forgings, gear blanks, flanges, etc.

The main advantage of pressure forging compared to drop forging is its ability to deform the entire workpiece. Drop hammer forging generally deforms only the surfaces of the workpiece in contact with the hammer and anvil; the interior of the workpiece will remain relatively undeformed.

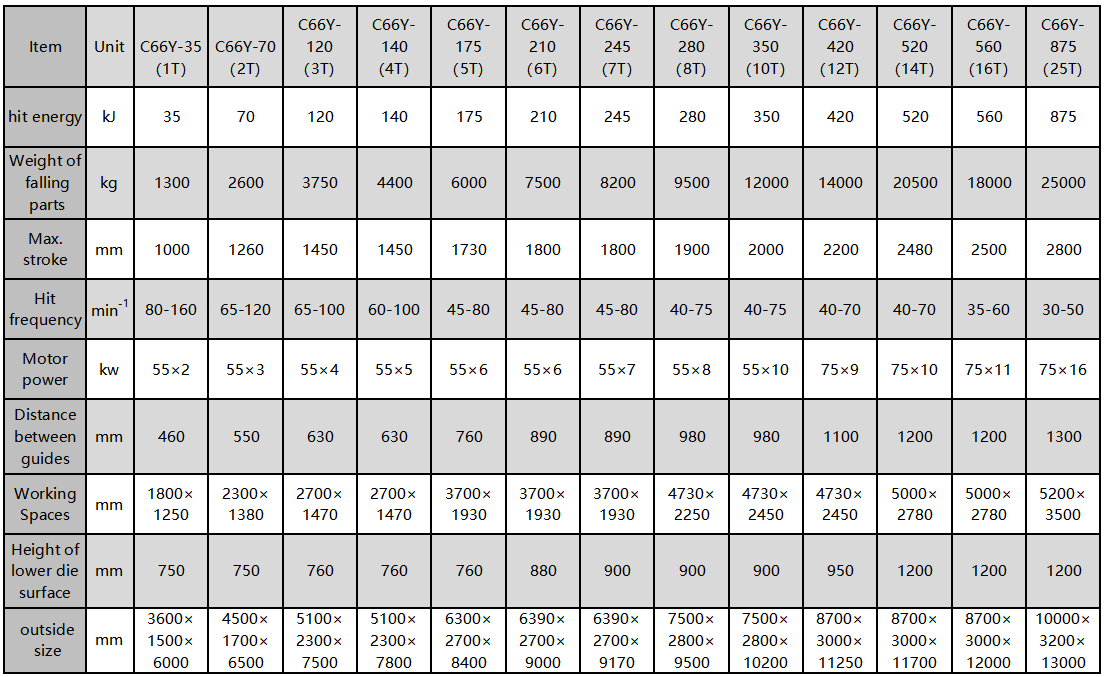

C66Y series fully hydraulic open die forging hammer is fully hydraulic drive open die forging hammer, there single arm type, arch type and bridge type etc structure type. The system principle is the below chamber of hammer rod piston connect the high pressure oil all the time,realize hit through control the upper and below oil pressure of piston of piston.It’s used for open die forging.

Electro-hydraulic hammer is a new type of forging equipment that is energy-saving and environmentally friendly. It is divided into single-arm electro-hydraulic hammer and double-arm electro-hydraulic hammer. The working principle is the same as that of electro-hydraulic power head, but the body is different from the original steam hammer. The guide of the hammer head is changed to “X” guide。

Hydraulic free forging hammers include full hydraulic free forging hammers and full hydraulic free forging hammers, both of which are widely accepted by modern free forging plants and are suitable for the production of various free forgings, such as shaft forgings, ring forgings, gear blanks, flanges, etc.

Design and manufacture a pneumatic utility power hammer with outstanding durability and user ergonomics, while making it affordable for hobbyists and professional blacksmiths alike. This also means that expensive foundations are not required.

Fully Hydraulic Open Die Forging Hammer
Hydraulic C type Open Die Forging Hammer
