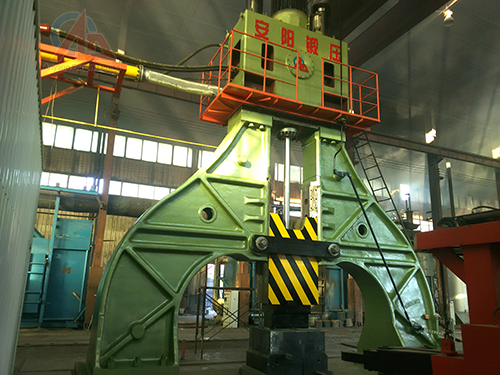

Double Arm Full Hydraulic Forging Hammer Equipment Price For Sale In India

(C66Y) Fully Hydraulic Forging Hammer is a kind of electric-hydraulic hammer operated by follow-up valve and drove by fully hydraulic driving system.

The forging hammer belongs to a kind of free forging equipment. It is a forging machine that uses the kinetic energy generated by the falling motion of the hammer to continuously hit the workpiece blank to produce plastic deformation.

C66Y series fully hydraulic open die forging hammer is fully hydraulic drive open die forging hammer, there single arm type, arch type and bridge type etc structure type. The system principle is the below chamber of hammer rod piston connect the high pressure oil all the time,realize hit through control the upper and below oil pressure of piston of piston.It’s used for open die forging.

The full hydraulic free forging hammer refers to the free forging hammer whose strike and return stroke of the hammer head are hydraulically driven. The principle of the system is that the lower chamber of the hammer rod piston is usually connected with high-pressure oil, and the strike and return stroke are realized by controlling the oil pressure of the upper chamber of the piston. The full hydraulic free forging hammer has the advantages of sufficient energy, fast frequency, low failure rate, and can realize hanging hammer at any position. It is suitable for producing various types of free forgings.

The full hydraulic free forging hammer refers to the free forging hammer whose strike and return stroke of the hammer head are hydraulically driven. The principle of the system is that the lower chamber of the hammer rod piston is usually connected with high-pressure oil, and the strike and return stroke are realized by controlling the oil pressure of the upper chamber of the piston. The full hydraulic free forging hammer has the advantages of sufficient energy, fast frequency, low failure rate, and can realize hanging hammer at any position. It is suitable for producing various types of free forgings.

The Fully Hydraulic Open Die Forging Hammer model in this video is C66Y-175KJ 5Ton. There are single arm types, arch types, bridge types, etc structure types with the C66Y series fully hydraulic open die forging hammer.

Electro-hydraulic hammer is a new type of forging equipment that is energy-saving and environmentally friendly. It is divided into single-arm electro-hydraulic hammer and double-arm electro-hydraulic hammer. The working principle is the same as that of electro-hydraulic power head, but the body is different from the original steam hammer. The guide of the hammer head is changed to “X” guide。

A fully hydraulic open die forging hammer and forging manipulator are shown in this video.
In addition to providing this fully hydraulic open die forging hammer and forging manipulator, we can also convert the old open die hammer to fully hydraulic.

Electro-hydraulic Open Die Forging Hammer is specially desired for general forging works, which is widely accepted in modern open die forging plants, suitable for producing various open die forgings.

The main advantage of pressure forging compared to drop forging is its ability to deform the entire workpiece. Drop hammer forging generally deforms only the surfaces of the workpiece in contact with the hammer and anvil; the interior of the workpiece will remain relatively undeformed.

The full hydraulic free forging hammer realizes the blow by controlling the upper and lower oil pressure of the piston. The blowing force is large, the speed is fast, and the failure is less.

Fully Hydraulic Open Die Forging Hammer
Hydraulic C type Open Die Forging Hammer

The full hydraulic free forging hammer has the advantages of sufficient energy, fast frequency, low failure rate, and can realize hanging hammer at any position. It is suitable for producing various types of free forgings.

The electro hydraulic forging hammer can save above 80-90% energy than steam hammer, which is the common understanding of personage of machinery industry. It doesn’t need boiler, removes smoke pollution, this improves worker’s working condition, so that the electro hydraulic forging is a product protecting environment, a replaced product of steam hammer.

Hydraulic free forging hammers include full hydraulic free forging hammers and full hydraulic free forging hammers, both of which are widely accepted by modern free forging plants and are suitable for the production of various free forgings, such as shaft forgings, ring forgings, gear blanks, flanges, etc.
