Double arm free forging hammer professional manufacturer selling price in China

The forging hammer belongs to a kind of free forging equipment. It is a forging machine that uses the kinetic energy generated by the falling motion of the hammer to continuously hit the workpiece blank to produce plastic deformation.

C66Y series fully hydraulic open die forging hammer is fully hydraulic drive open die forging hammer, there single arm type, arch type and bridge type etc structure type. The system principle is the below chamber of hammer rod piston connect the high pressure oil all the time,realize hit through control the upper and below oil pressure of piston of piston.It’s used for open die forging.

Electro-hydraulic hammer is a new type of forging equipment that is energy-saving and environmentally friendly. It is divided into single-arm electro-hydraulic hammer and double-arm electro-hydraulic hammer. The working principle is the same as that of electro-hydraulic power head, but the body is different from the original steam hammer. The guide of the hammer head is changed to “X” guide。

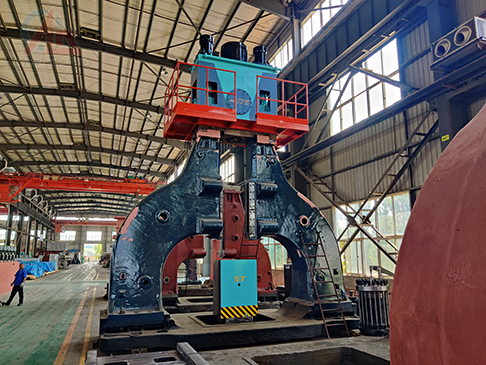

Anyang Forging Press C66Y series arch free forging electro-hydraulic hammer is supported by two left and right fuselage with arch, as the name suggests, arch electro-hydraulic hammer. It consists of power head, anvil, fuselage, hydraulic station and other parts.

Electro-hydraulic Open Die Forging Hammer is specially desired for general forging works, which is widely accepted in modern open die forging plants, suitable for producing various open die forgings.

C66Y series full hydraulic free forging hammers are full hydraulic driven free forging hammers with single arm type, arch type, bridge type and other structural forms, which are used for free forging.

The full hydraulic free forging hammer refers to the free forging hammer whose strike and return stroke of the hammer head are hydraulically driven. The principle of the system is that the lower chamber of the hammer rod piston is usually connected with high-pressure oil, and the strike and return stroke are realized by controlling the oil pressure of the upper chamber of the piston. The full hydraulic free forging hammer has the advantages of sufficient energy, fast frequency, low failure rate, and can realize hanging hammer at any position. It is suitable for producing various types of free forgings.

A full hydraulic forging hammer is a new type of forging equipment that is energy-saving and environmentally friendly. It is divided into a single-arm hydraulic forging hammer and a double-arm hydraulic forging hammer.

(C66Y) Fully Hydraulic Forging Hammer is a kind of electric-hydraulic hammer operated by follow-up valve and drove by fully hydraulic driving system.

A fully hydraulic open die forging hammer and forging manipulator are shown in this video.
In addition to providing this fully hydraulic open die forging hammer and forging manipulator, we can also convert the old open die hammer to fully hydraulic.

Full hydraulic free forging hammers are widely used in machinery, steel, non-ferrous metallurgy, railway locomotives, ships, wind power, nuclear power, aerospace and other industries, and are used for non-ferrous and ferrous metals and other free forging ingots.

The main advantage of pressure forging compared to drop forging is its ability to deform the entire workpiece. Drop hammer forging generally deforms only the surfaces of the workpiece in contact with the hammer and anvil; the interior of the workpiece will remain relatively undeformed.

The fully hydraulic die forging electro-hydraulic hammer is cost-effective and suitable for multi-variety, medium and small batch die forgings.
