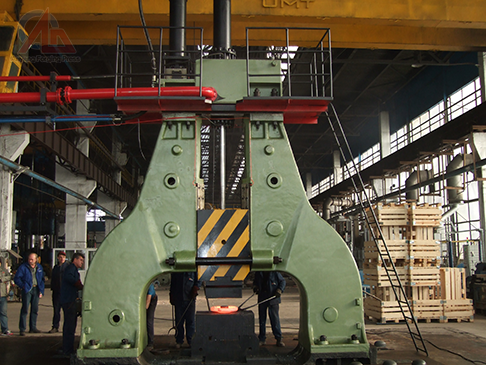

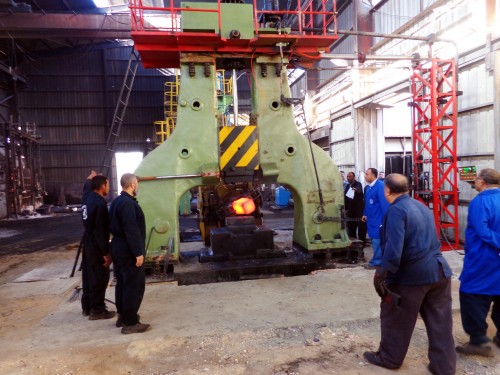

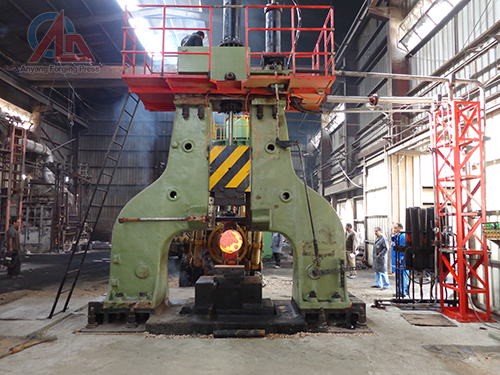

C66Y series open forging hammer workshop trial run in China

The full hydraulic free forging hammer refers to the free forging hammer whose strike and return stroke of the hammer head are hydraulically driven. It has the advantages of sufficient energy, fast frequency, low failure rate, and can realize the suspension hammer at any position. It is suitable for producing various types of free forgings.

Electro-hydraulic Open Die Forging Hammer is specially desired for general forging works, which is widely accepted in modern open die forging plants, suitable for producing various open die forgings.

Fully Hydraulic Open Die Forging Hammer
Hydraulic C type Open Die Forging Hammer

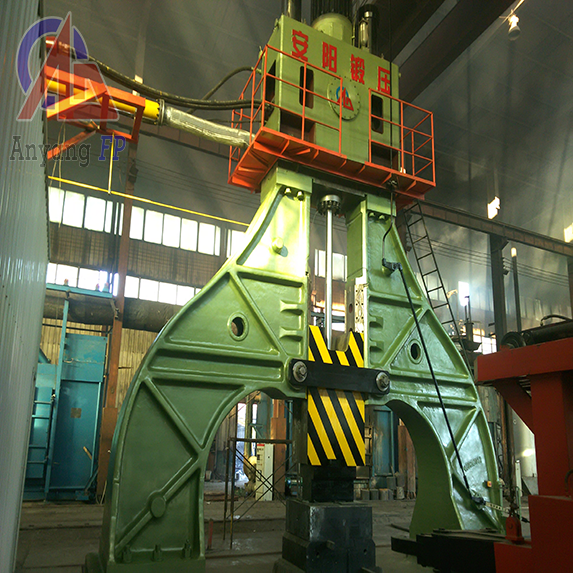

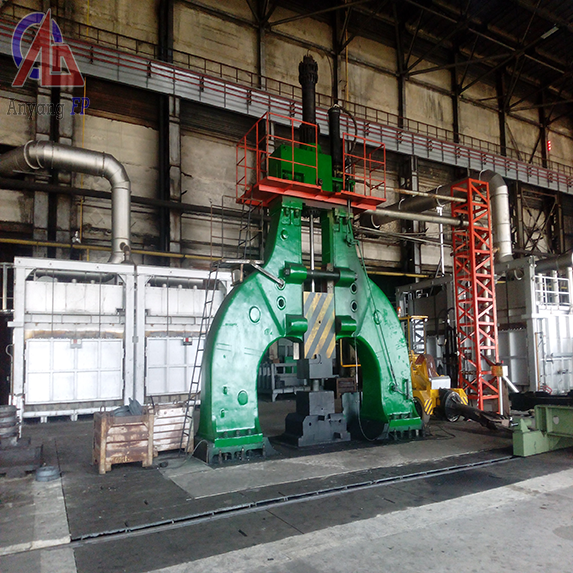

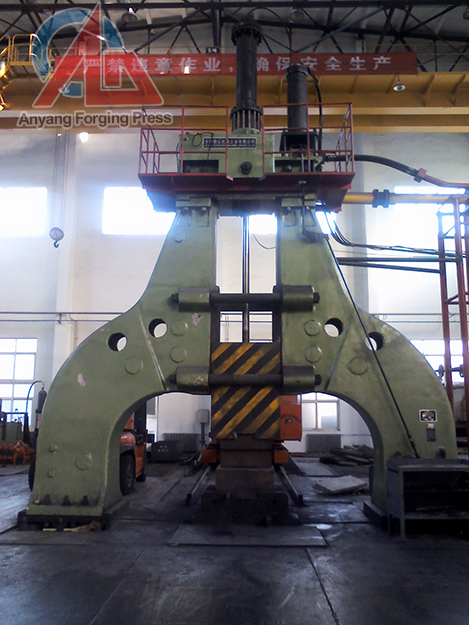

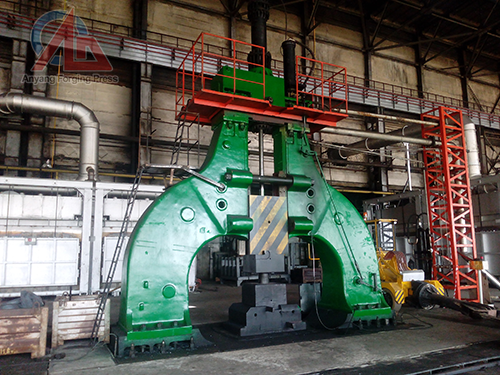

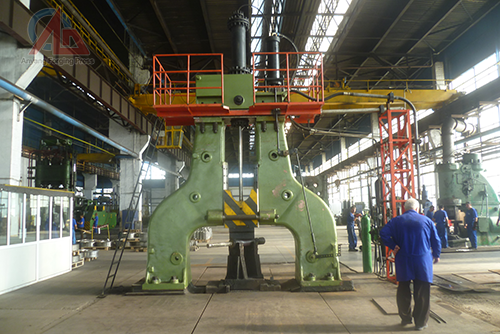

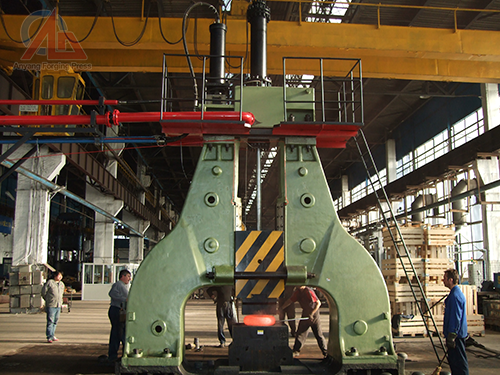

Anyang Forging Press C66Y series arch free forging electro-hydraulic hammer is supported by two left and right fuselage with arch, as the name suggests, arch electro-hydraulic hammer. It consists of power head, anvil, fuselage, hydraulic station and other parts.

The Fully Hydraulic Open Die Forging Hammer model in this video is C66Y-175KJ 5Ton. There are single arm types, arch types, bridge types, etc structure types with the C66Y series fully hydraulic open die forging hammer.

The principle of the fully hydraulic free forging electro-hydraulic hammer determines that it has sufficient energy, fast frequency, no soaking mold, and low failure rate.

Hydraulic free forging hammers include full hydraulic free forging hammers and full hydraulic free forging hammers, both of which are widely accepted by modern free forging plants and are suitable for the production of various free forgings, such as shaft forgings, ring forgings, gear blanks, flanges, etc.

At present, the all-hydraulic electro-hydraulic hammer has been applied to various specifications and series of die forging hammers and free forging hammers. Practice has proved that the all-hydraulic electro-hydraulic hammer is an ideal upgrade product for the hydraulic-pneumatic hammer.

The electro hydraulic forging hammer can save above 80-90% energy than steam hammer, which is the common understanding of personage of machinery industry. It doesn’t need boiler, removes smoke pollution, this improves worker’s working condition, so that the electro hydraulic forging is a product protecting environment, a replaced product of steam hammer.

Full hydraulic free forging hammer refers to the free forging hammer whose strike and return stroke of the hammer head are hydraulically driven.

The full hydraulic free forging hammer refers to the free forging hammer whose strike and return stroke of the hammer head are hydraulically driven. The principle of the system is that the lower chamber of the hammer rod piston is usually connected with high-pressure oil, and the strike and return stroke are realized by controlling the oil pressure of the upper chamber of the piston. The full hydraulic free forging hammer has the advantages of sufficient energy, fast frequency, low failure rate, and can realize hanging hammer at any position. It is suitable for producing various types of free forgings.

The full hydraulic free forging hammer refers to the free forging hammer whose strike and return stroke of the hammer head are hydraulically driven. The principle of the system is that the lower chamber of the hammer rod piston is usually connected with high-pressure oil, and the strike and return stroke are realized by controlling the oil pressure of the upper chamber of the piston. The full hydraulic free forging hammer has the advantages of sufficient energy, fast frequency, low failure rate, and can realize hanging hammer at any position. It is suitable for producing various types of free forgings.

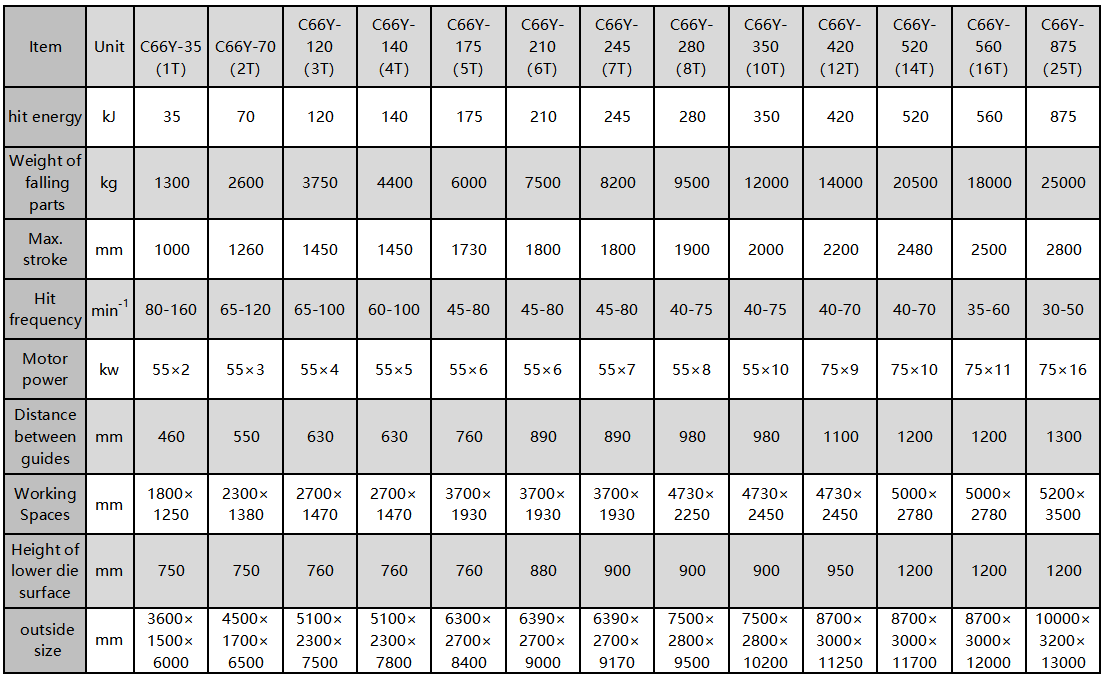

C66Y series fully hydraulic open die forging hammer is fully hydraulic drive open die forging hammer, there single arm type, arch type and bridge type etc structure type. The system principle is the below chamber of hammer rod piston connect the high pressure oil all the time,realize hit through control the upper and below oil pressure of piston of piston.It’s used for open die forging.

Design and manufacture a pneumatic utility power hammer with outstanding durability and user ergonomics, while making it affordable for hobbyists and professional blacksmiths alike. This also means that expensive foundations are not required.

Fully hydraulic closed die forging hammer is driven by hydraulic oil without nitrogen gas, is mainly applied in many kinds of closed die forgings,such as automobile forgings,tractor forgings,agricultural equipment forgings, oil and gas industry die forgings, electrical power station die forgings and industrial forgings

(C66Y) Fully Hydraulic Forging Hammer is a kind of electric-hydraulic hammer operated by follow-up valve and drove by fully hydraulic driving system.

The Fully Hydraulic Open Die Forging Hammer has the advantages of sufficient energy, fast frequency, low failure rate, and can hover at any position. A Full Hydraulic Free Forging Hammer is suitable for producing various types of free forgings. Anyang Forging Company can also provide various kinds of forging manipulators.
