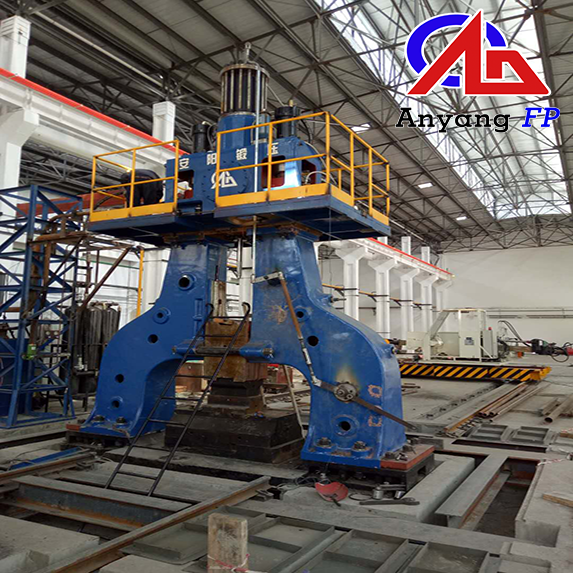

C66Y series open forging hammer customer acceptance in China

Fully hydraulic closed die forging hammer is driven by hydraulic oil without nitrogen gas, is mainly applied in many kinds of closed die forgings,such as automobile forgings,tractor forgings,agricultural equipment forgings, oil and gas industry die forgings, electrical power station die forgings and industrial forgings

Electro-hydraulic hammer is a new type of forging equipment that is energy-saving and environmentally friendly. The guide of the hammer head is changed to “X” guide rail, which can adjust the guide rail clearance to a very low level, greatly improving the guiding accuracy of the electro-hydraulic hammer, improving the quality of forgings, extending the Hammer life.

C66Y series fully hydraulic open die forging hammer is fully hydraulic drive open die forging hammer, there single arm type, arch type and bridge type etc structure type. The system principle is the below chamber of hammer rod piston connect the high pressure oil all the time,realize hit through control the upper and below oil pressure of piston of piston.It’s used for open die forging.

A full hydraulic forging hammer is a new type of forging equipment that is energy-saving and environmentally friendly. It is divided into a single-arm hydraulic forging hammer and a double-arm hydraulic forging hammer.

At present, the all-hydraulic electro-hydraulic hammer has been applied to various specifications and series of die forging hammers and free forging hammers. Practice has proved that the all-hydraulic electro-hydraulic hammer is an ideal upgrade product for the hydraulic-pneumatic hammer.

The full hydraulic free forging hammer refers to the free forging hammer whose strike and return stroke of the hammer head are hydraulically driven. It has the advantages of sufficient energy, fast frequency, low failure rate, and can realize the suspension hammer at any position. It is suitable for producing various types of free forgings.

The full hydraulic free forging hammer realizes the blow by controlling the upper and lower oil pressure of the piston. The blowing force is large, the speed is fast, and the failure is less.

The full hydraulic free forging hammer refers to the free forging hammer whose strike and return stroke of the hammer head are hydraulically driven. The principle of the system is that the lower chamber of the hammer rod piston is usually connected with high-pressure oil, and the strike and return stroke are realized by controlling the oil pressure of the upper chamber of the piston. The full hydraulic free forging hammer has the advantages of sufficient energy, fast frequency, low failure rate, and can realize hanging hammer at any position. It is suitable for producing various types of free forgings.

The full hydraulic free forging hammer refers to the free forging hammer whose strike and return stroke of the hammer head are hydraulically driven. The principle of the system is that the lower chamber of the hammer rod piston is usually connected with high-pressure oil, and the strike and return stroke are realized by controlling the oil pressure of the upper chamber of the piston. The full hydraulic free forging hammer has the advantages of sufficient energy, fast frequency, low failure rate, and can realize hanging hammer at any position. It is suitable for producing various types of free forgings.

The electro hydraulic forging hammer can save above 80-90% energy than steam hammer, which is the common understanding of personage of machinery industry. It doesn’t need boiler, removes smoke pollution, this improves worker’s working condition, so that the electro hydraulic forging is a product protecting environment, a replaced product of steam hammer.

The fully hydraulic die forging electro-hydraulic hammer is cost-effective and suitable for multi-variety, medium and small batch die forgings.

The full hydraulic free forging hammer has the advantages of sufficient energy, fast frequency, low failure rate, and can realize hanging hammer at any position. It is suitable for producing various types of free forgings.

A fully hydraulic open die forging hammer and forging manipulator are shown in this video.
In addition to providing this fully hydraulic open die forging hammer and forging manipulator, we can also convert the old open die hammer to fully hydraulic.

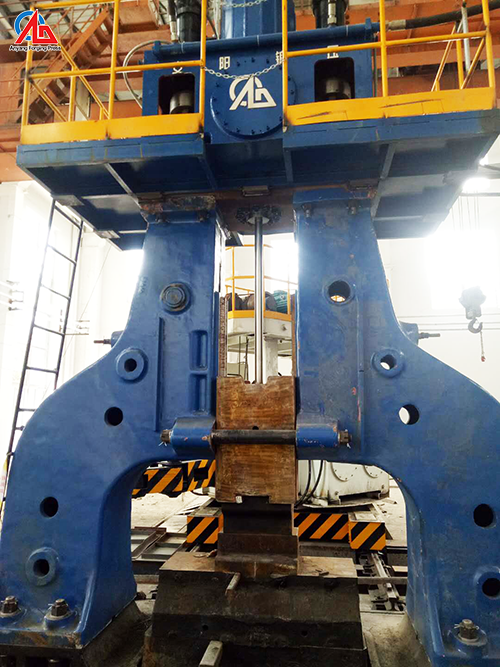

Anyang Forging Press C66Y series arch free forging electro-hydraulic hammer is supported by two left and right fuselage with arch, as the name suggests, arch electro-hydraulic hammer. It consists of power head, anvil, fuselage, hydraulic station and other parts.

The forging hammer belongs to a kind of free forging equipment. It is a forging machine that uses the kinetic energy generated by the falling motion of the hammer to continuously hit the workpiece blank to produce plastic deformation.

The main advantage of pressure forging compared to drop forging is its ability to deform the entire workpiece. Drop hammer forging generally deforms only the surfaces of the workpiece in contact with the hammer and anvil; the interior of the workpiece will remain relatively undeformed.

Hydraulic free forging hammers include full hydraulic free forging hammers and full hydraulic free forging hammers, both of which are widely accepted by modern free forging plants and are suitable for the production of various free forgings, such as shaft forgings, ring forgings, gear blanks, flanges, etc.
