C66Y fully hydraulic open forging hammer for sale

Electro-hydraulic hammer is a new type of forging equipment that is energy-saving and environmentally friendly. It is divided into single-arm electro-hydraulic hammer and double-arm electro-hydraulic hammer. The working principle is the same as that of electro-hydraulic power head, but the body is different from the original steam hammer. The guide of the hammer head is changed to “X” guide。

Electro-hydraulic Open Die Forging Hammer is specially desired for general forging works, which is widely accepted in modern open die forging plants, suitable for producing various open die forgings.

At present, the all-hydraulic electro-hydraulic hammer has been applied to various specifications and series of die forging hammers and free forging hammers. Practice has proved that the all-hydraulic electro-hydraulic hammer is an ideal upgrade product for the hydraulic-pneumatic hammer.

The double-arm (arch type) free forging electro-hydraulic hammer converts the potential energy of the hammer head into the kinetic energy of the hammer head, thereby striking the forging and performing work.

The Fully Hydraulic Open Die Forging Hammer model in this video is C66Y-175KJ 5Ton. There are single arm types, arch types, bridge types, etc structure types with the C66Y series fully hydraulic open die forging hammer.

The full hydraulic free forging hammer refers to the free forging hammer whose strike and return stroke of the hammer head are hydraulically driven. The principle of the system is that the lower chamber of the hammer rod piston is usually connected with high-pressure oil, and the strike and return stroke are realized by controlling the oil pressure of the upper chamber of the piston. The full hydraulic free forging hammer has the advantages of sufficient energy, fast frequency, low failure rate, and can realize hanging hammer at any position. It is suitable for producing various types of free forgings.

Fully Hydraulic Open Die Forging Hammer
Hydraulic C type Open Die Forging Hammer

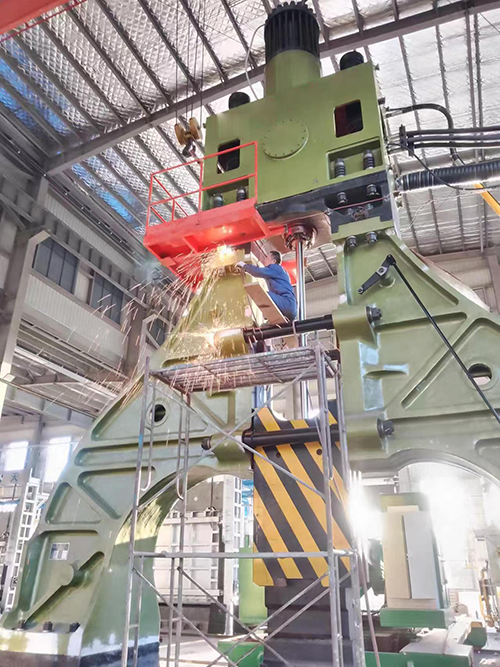

Anyang Forging Press C66Y series arch free forging electro-hydraulic hammer is supported by two left and right fuselage with arch, as the name suggests, arch electro-hydraulic hammer. It consists of power head, anvil, fuselage, hydraulic station and other parts.

C66Y series full hydraulic free forging hammers are full hydraulic driven free forging hammers with single arm type, arch type, bridge type and other structural forms, which are used for free forging.

Design and manufacture a pneumatic utility power hammer with outstanding durability and user ergonomics, while making it affordable for hobbyists and professional blacksmiths alike. This also means that expensive foundations are not required.

Electro-hydraulic hammer is a new type of forging equipment that is energy-saving and environmentally friendly. The guide of the hammer head is changed to “X” guide rail, which can adjust the guide rail clearance to a very low level, greatly improving the guiding accuracy of the electro-hydraulic hammer, improving the quality of forgings, extending the Hammer life.

The Fully Hydraulic Open Die Forging Hammer has the advantages of sufficient energy, fast frequency, low failure rate, and can hover at any position. A Full Hydraulic Free Forging Hammer is suitable for producing various types of free forgings. Anyang Forging Company can also provide various kinds of forging manipulators.

The electro hydraulic forging hammer can save above 80-90% energy than steam hammer, which is the common understanding of personage of machinery industry. It doesn’t need boiler, removes smoke pollution, this improves worker’s working condition, so that the electro hydraulic forging is a product protecting environment, a replaced product of steam hammer.

Hydraulic free forging hammers are mainly used in general forging projects, such as auto parts forgings, motorcycle parts forgings, hardware forgings, construction forgings, flanges, etc.
