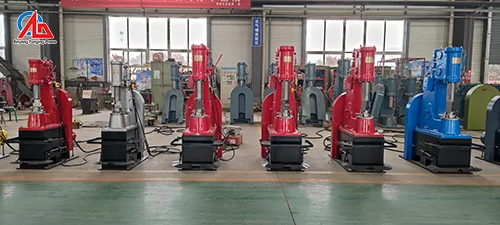

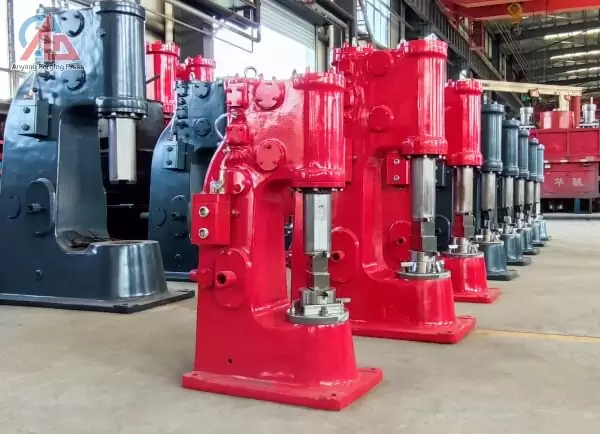

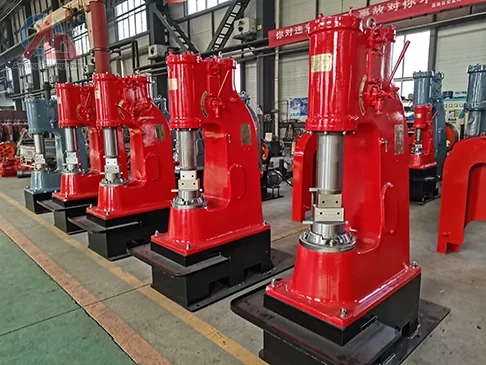

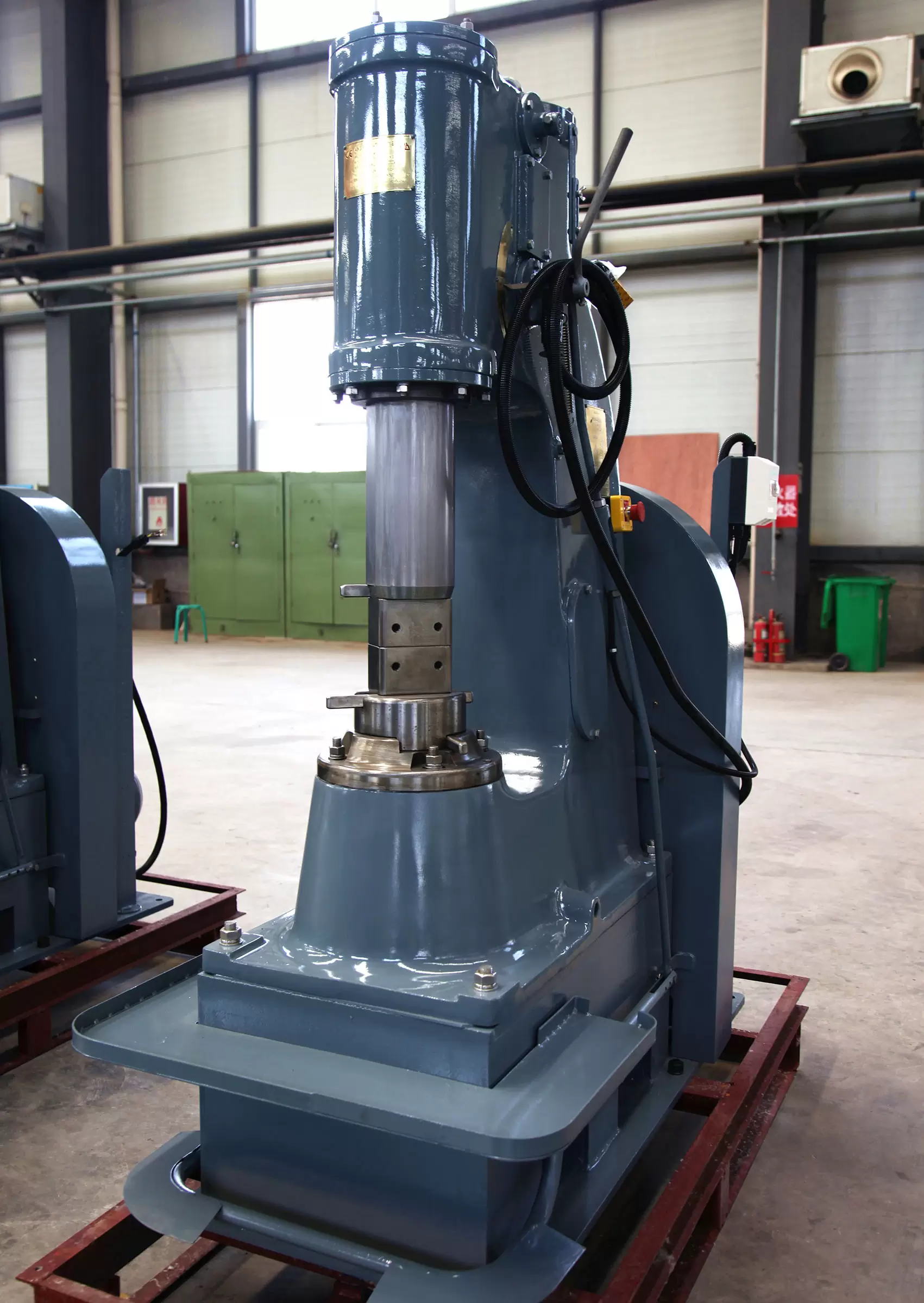

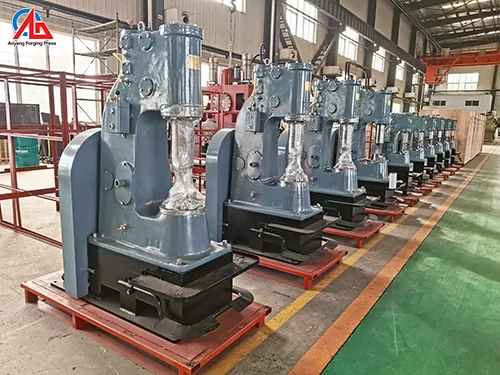

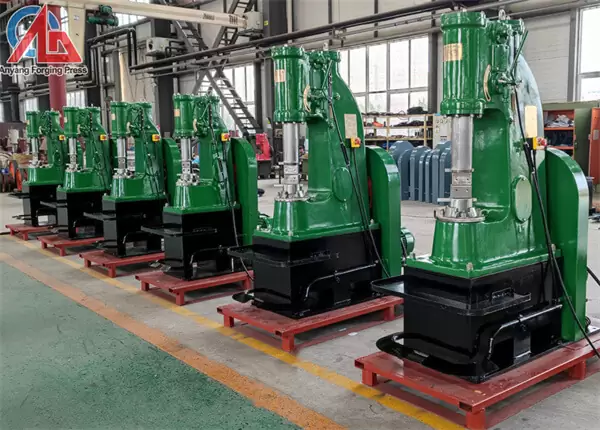

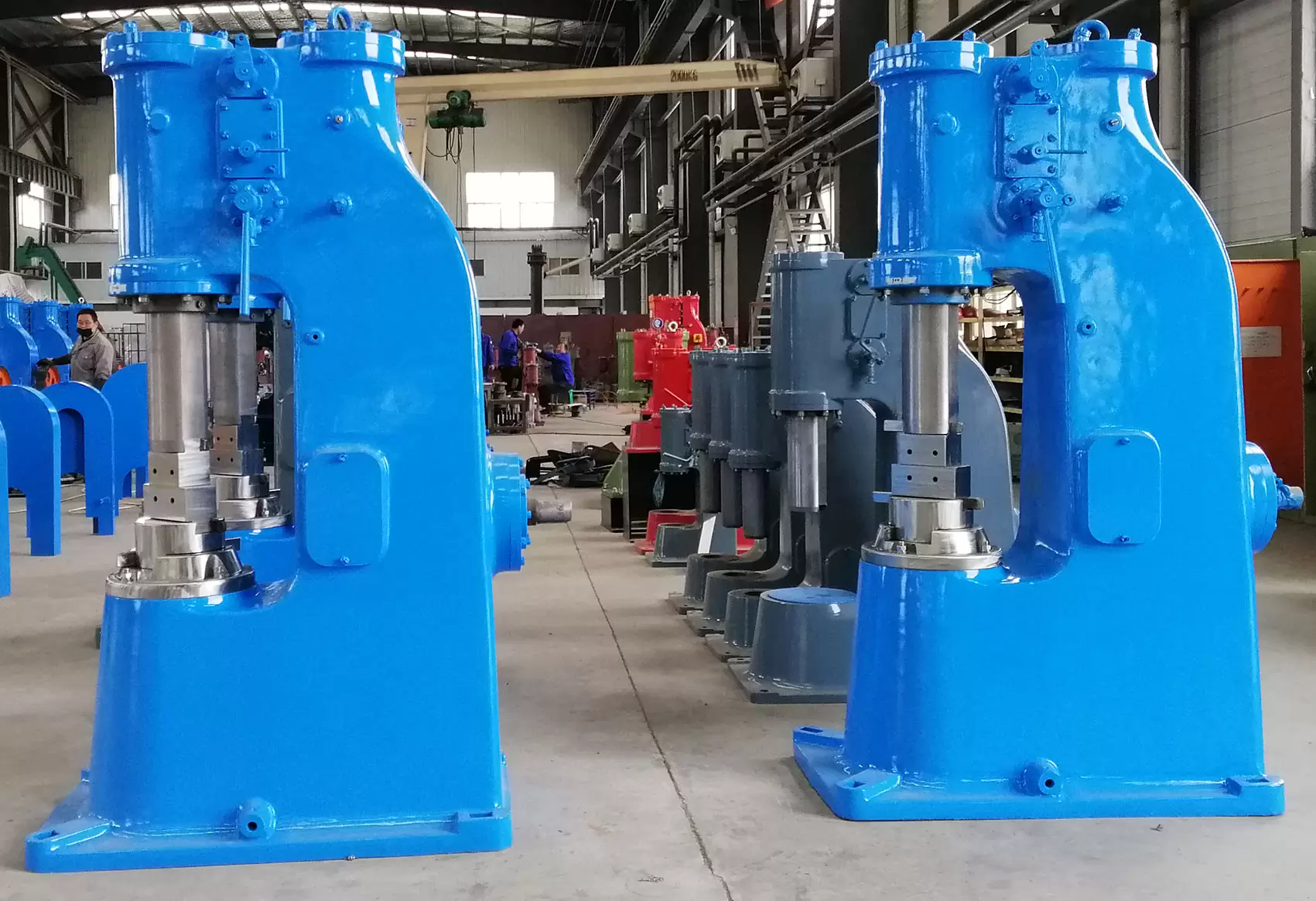

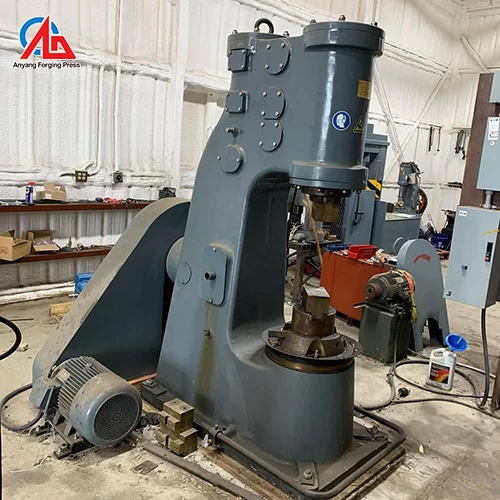

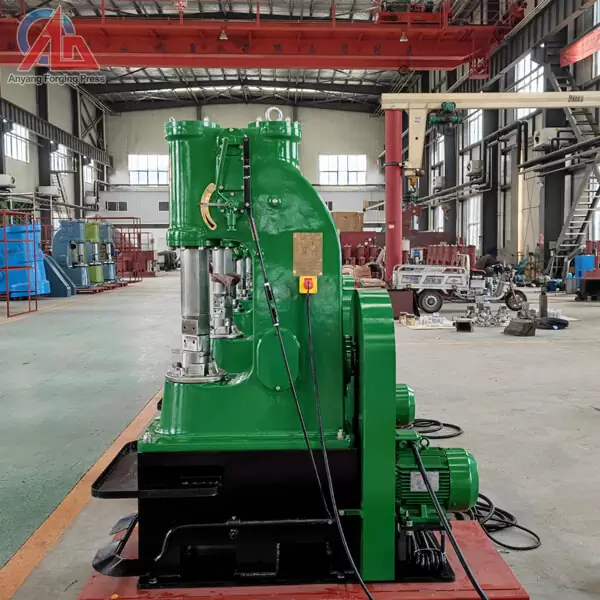

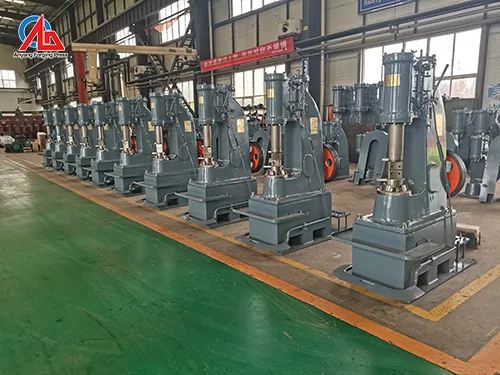

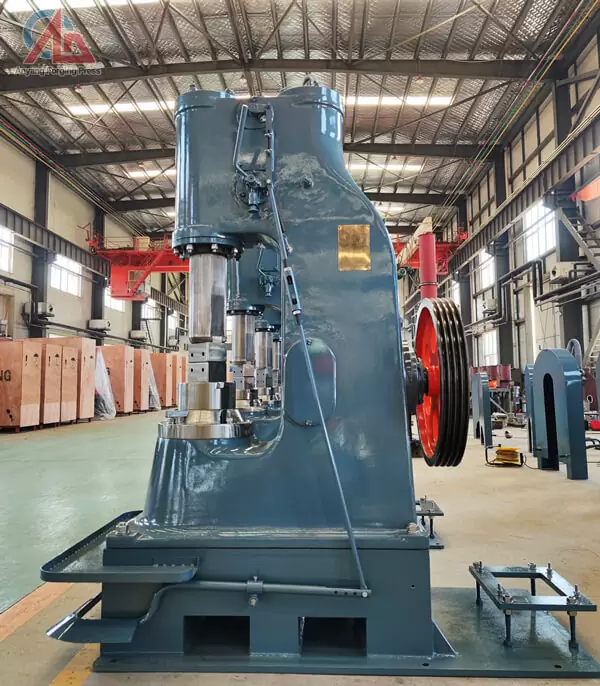

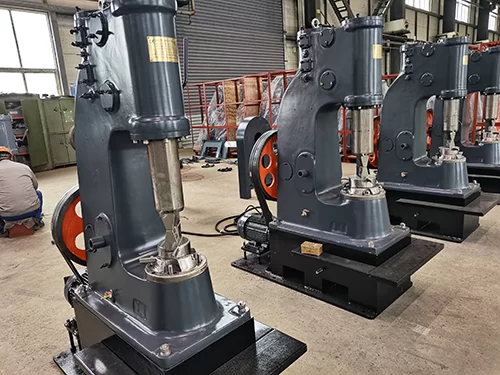

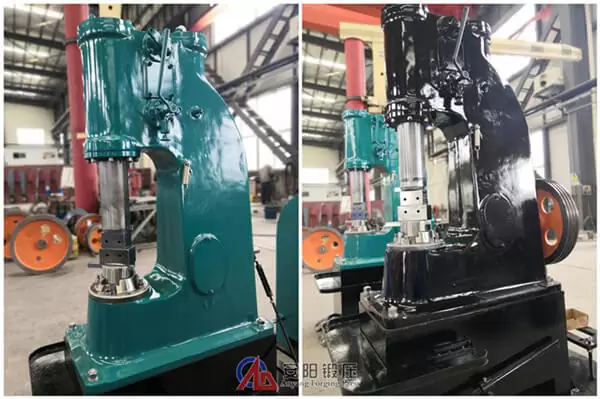

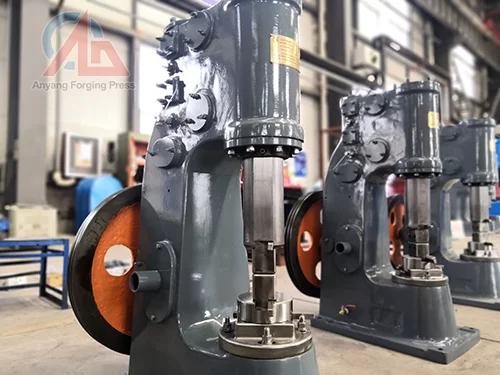

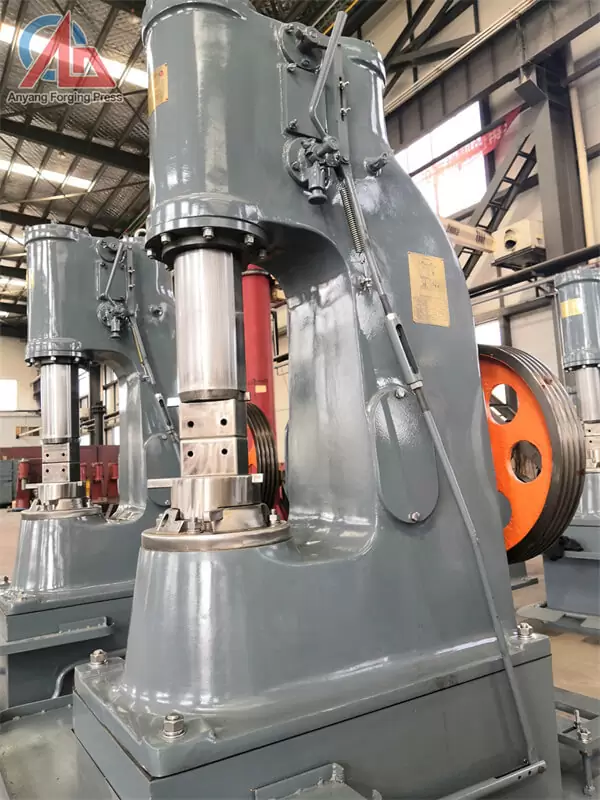

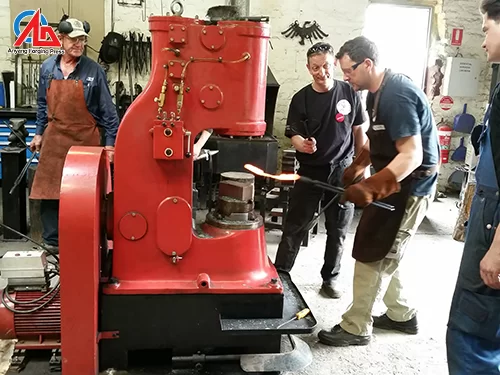

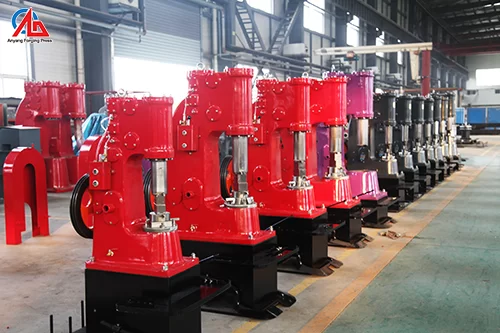

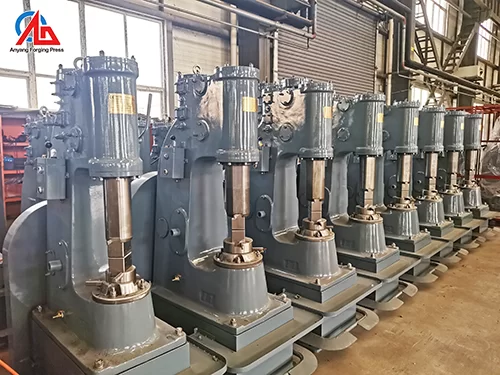

The small air hammer is mainly composed of the body, transmission mechanism, compression cylinder and working cylinder, compression piston, falling part, air distribution mechanism and steel base.

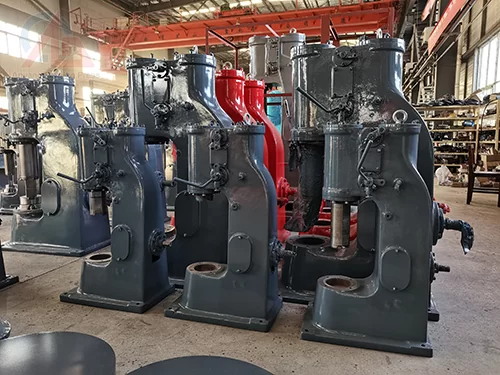

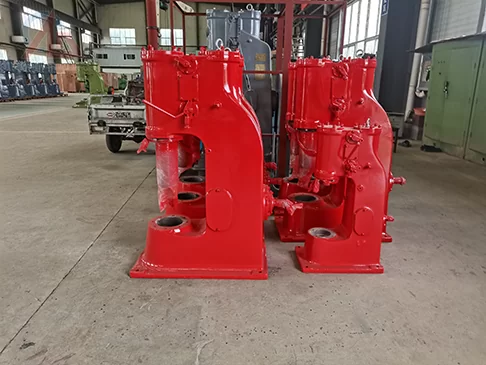

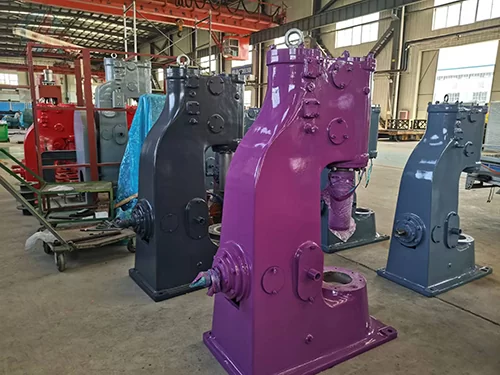

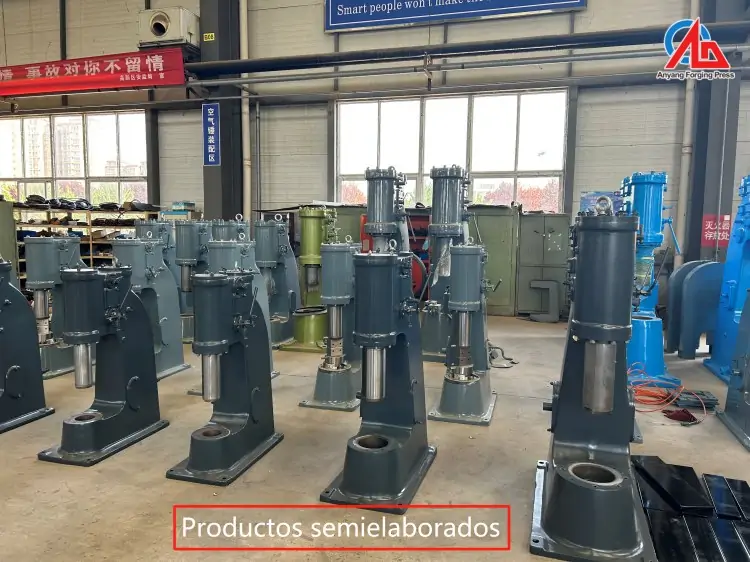

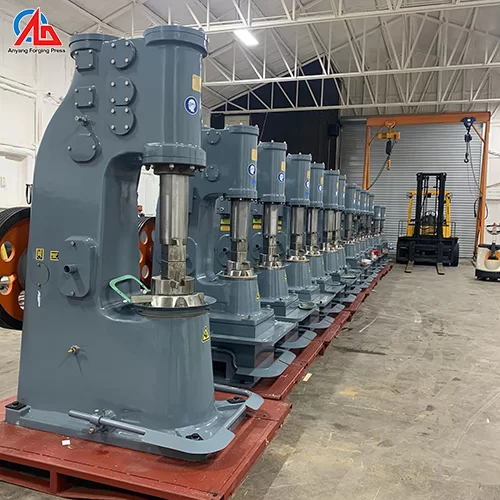

1. The fuselage. The fuselage is the main body of the air hammer. On the fuselage are installed the transmission device, the working mechanism and the control mechanism. These mechanisms are compactly combined on the frame into a

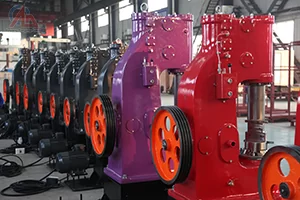

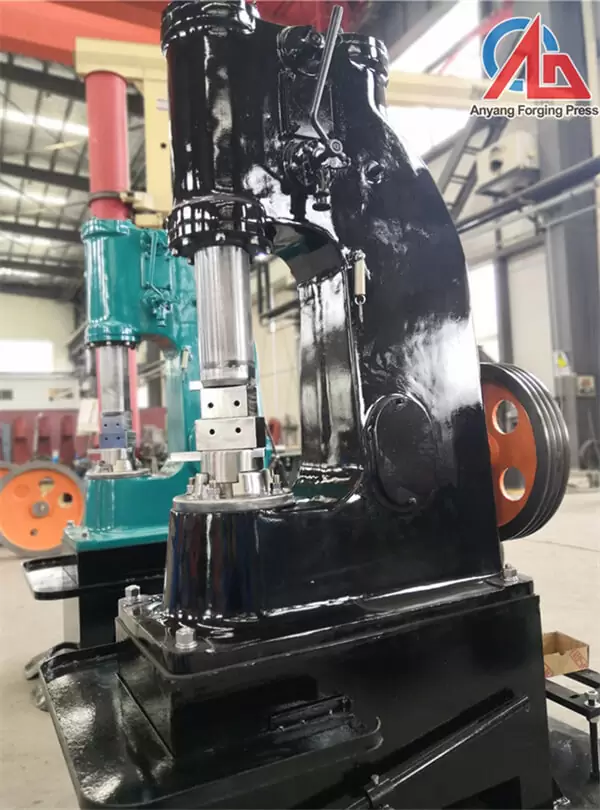

2. Transmission mechanism. The transmission mechanism includes a pulley, a crankshaft, and a connecting rod system. It converts the rotary motion of the motor into the up and down reciprocating motion of the compression piston.
3. Compression cylinder and working cylinder. The upper and lower parts of the compression cylinder and the working cylinder are communicated with the upper and lower rotary valves, and the upward and downward movement of the compression piston generates compressed air to drive the working piston to move up and down.

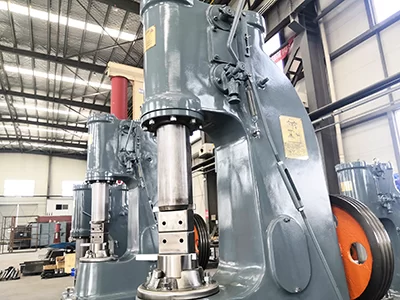

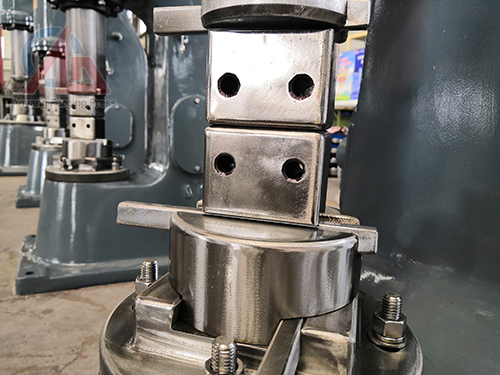

4. The falling part. The falling part is composed of working piston, hammer rod and upper anvil, etc. The hammer rod and working piston are a whole. In order to make the weight meet the technical specifications, it needs to be a hollow part. The connection between the hammer rod and the hammer head is made of a dovetail groove and a wedge iron. connect.
5. Gas distribution mechanism. The air distribution mechanism is composed of upper valve, lower valve, operating handle or pedal lever and other departments, and the realization of various actions is controlled by the air distribution mechanism.
6. Steel base. Due to the small size of the small air hammer, it adopts the overall body design without anvil. Therefore, the function of the steel base is to raise the lower anvil surface of the hammer to a suitable height, so that the forger can operate comfortably, and the weight of the anvil seat is increased, which can eliminate the vibration generated during hammering.
