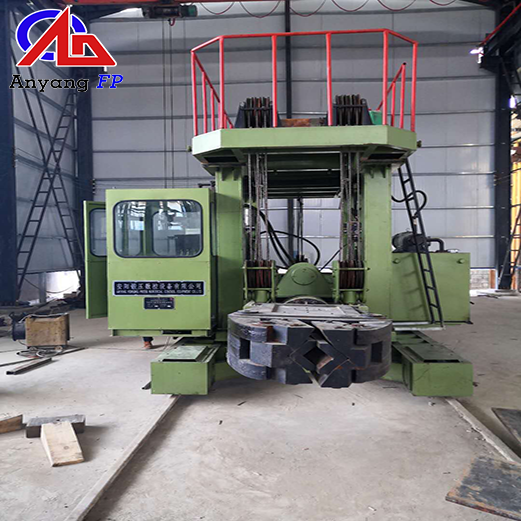

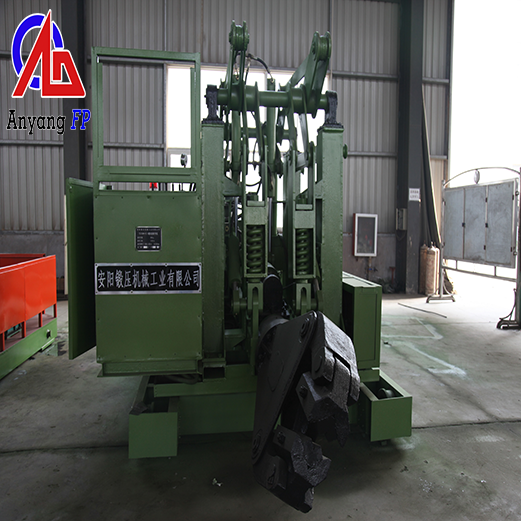

Anyang AF Mechanical Hydraulic Hybrid Manipulator

Forging manipulator has fully hydraulic and mechanical-hydraulic mixed driven types. Forging manipulator is used to operate open die forgings under hammers and presses . It has manipulator walk, clamp clamping, the clamp head rotate, clamp frame lifting, clamp frame rotating etc functions.

The frame type forging manipulator includes translational movement manipulator and rotating movement manipulator. Frame type translational movement manipulator actions include manipulator travelling, front and rear side of clamping rod goes up and down, clamping device incline, clamping head rotating, and tong open and close.

The mobile manipulator is mainly used for the loading and loading of workpieces, and also for the transportation of workpieces. The mobile loading manipulator can load workpieces from the ground, load them into the furnace, and after heating, load the workpieces from the furnace to the main forging equipment such as forging hammers, forging presses or ring rolling machines.

Forging machine manufacturer hydraulic forging manipulator is fully hydraulic driven type with lateral shift function, which can be operated by manual, semi-auto, auto, able to connect with hydraulic free forging press through digital input to realize integrated operation.

The video shows a 3150-ton Open Die Forging Press and an 8-ton Forging Manipulator, both manufactured by Anyang Forging Press Company.

Forging charger is a mechanical-hydraulic mixed type machine.,it is used to transport cold and hot ingots discs and rings in open-die forging plants, ring mills, blooming mills and similar works. According to the types of the manipulative workpiece, they fall into clamp-support type, clamp-hold type, fork type. It can do the functions: manipulator walk,upside of the manipulator turn around, clamp rod flex,clamp rod lifting.

The forging manipulator is an indispensable large auxiliary machine for forging and processing the red-burning blank in the forging workshop.

Mobile Forging Manipulators are suitable for the precise handling of small to very large ingots while forging. In addition, they can be used for transporting the ingots between furnaces and forging presses or hammers.

Frame type rotating movement manipulator actions include manipulator travelling, front and rear side of clamping rod goes up and down, clamping device incline, clamping head rotating, and tong open and close, and frame rotating movement.

The forging manipulator is mainly used to hold the shaft forgings and blanks with the free forging hammer or free forging press for forging operation.

The mobile manipulator can load the workpiece from the ground into the furnace. After heating, the workpiece can be charged from the furnace to the main forging equipment such as forging hammer, forging press or ring rolling machine. Also used for the transport of workpieces.

The frame manipulator is divided into two structural forms: the frame type linear manipulator and the frame type rotary manipulator. It is mainly used for clamping shaft forgings and blanks with free forging hammer or free forging press, which can greatly improve the production efficiency and forging quality, reduce the labor intensity of workers, and realize the mechanization of forging production.
