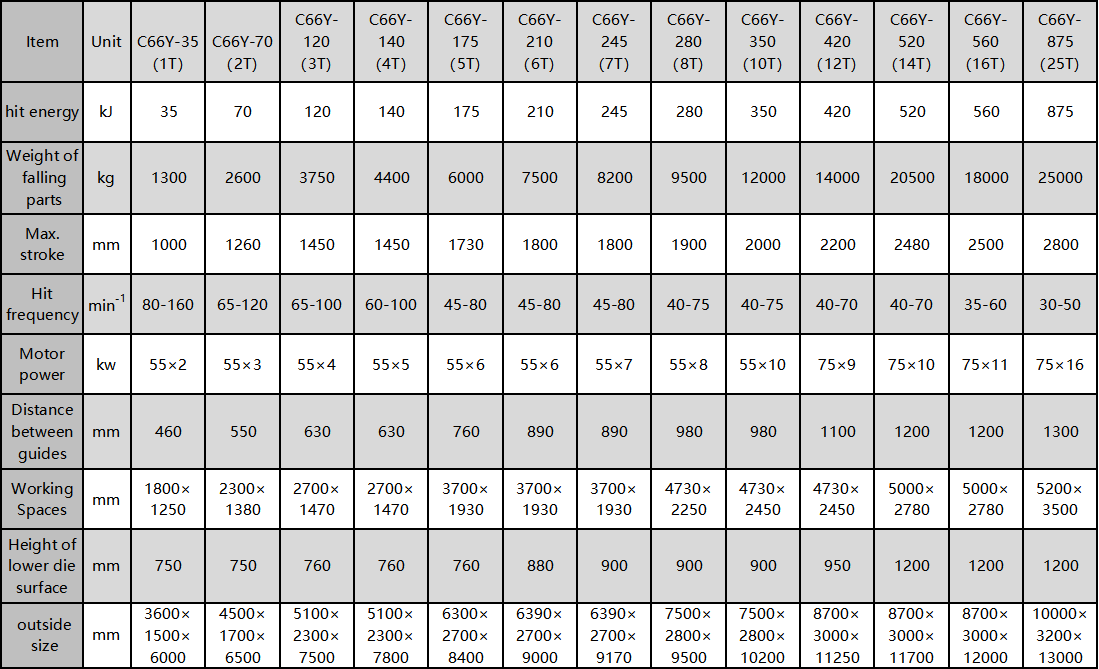

8 ton open hydraulic forging hammer parameters and features

A fully hydraulic open die forging hammer and forging manipulator are shown in this video.
In addition to providing this fully hydraulic open die forging hammer and forging manipulator, we can also convert the old open die hammer to fully hydraulic.

Electro-hydraulic hammer is a new type of forging equipment that is energy-saving and environmentally friendly. It is divided into single-arm electro-hydraulic hammer and double-arm electro-hydraulic hammer. The working principle is the same as that of electro-hydraulic power head, but the body is different from the original steam hammer. The guide of the hammer head is changed to “X” guide。

Design and manufacture a pneumatic utility power hammer with outstanding durability and user ergonomics, while making it affordable for hobbyists and professional blacksmiths alike. This also means that expensive foundations are not required.

Fully Hydraulic Open Die Forging Hammer
Hydraulic C type Open Die Forging Hammer

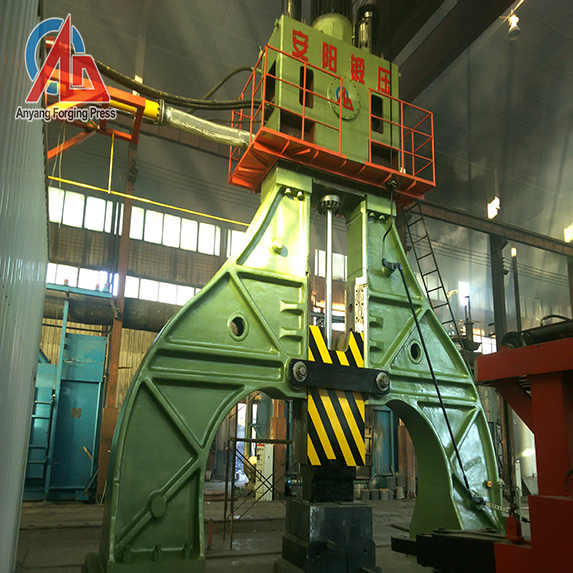

The Fully Hydraulic Open Die Forging Hammer model in this video is C66Y-175KJ 5Ton. There are single arm types, arch types, bridge types, etc structure types with the C66Y series fully hydraulic open die forging hammer.

C66Y series fully hydraulic open die forging hammer is fully hydraulic drive open die forging hammer, there single arm type, arch type and bridge type etc structure type. The system principle is the below chamber of hammer rod piston connect the high pressure oil all the time,realize hit through control the upper and below oil pressure of piston of piston.It’s used for open die forging.

Hydraulic free forging hammers are mainly used in general forging projects, such as auto parts forgings, motorcycle parts forgings, hardware forgings, construction forgings, flanges, etc.

The full hydraulic free forging hammer refers to the free forging hammer whose strike and return stroke of the hammer head are hydraulically driven. The principle of the system is that the lower chamber of the hammer rod piston is usually connected with high-pressure oil, and the strike and return stroke are realized by controlling the oil pressure of the upper chamber of the piston. The full hydraulic free forging hammer has the advantages of sufficient energy, fast frequency, low failure rate, and can realize hanging hammer at any position. It is suitable for producing various types of free forgings.

The full hydraulic free forging hammer refers to the free forging hammer whose strike and return stroke of the hammer head are hydraulically driven. It has the advantages of sufficient energy, fast frequency, low failure rate, and can realize the suspension hammer at any position. It is suitable for producing various types of free forgings.

The fully hydraulic die forging electro-hydraulic hammer is cost-effective and suitable for multi-variety, medium and small batch die forgings.

The full hydraulic free forging hammer refers to the free forging hammer whose strike and return stroke of the hammer head are hydraulically driven. The principle of the system is that the lower chamber of the hammer rod piston is usually connected with high-pressure oil, and the strike and return stroke are realized by controlling the oil pressure of the upper chamber of the piston. The full hydraulic free forging hammer has the advantages of sufficient energy, fast frequency, low failure rate, and can realize hanging hammer at any position. It is suitable for producing various types of free forgings.

Full hydraulic free forging hammers are widely used in machinery, steel, non-ferrous metallurgy, railway locomotives, ships, wind power, nuclear power, aerospace and other industries, and are used for non-ferrous and ferrous metals and other free forging ingots.

A full hydraulic forging hammer is a new type of forging equipment that is energy-saving and environmentally friendly. It is divided into a single-arm hydraulic forging hammer and a double-arm hydraulic forging hammer.

Design and manufacture a pneumatic utility power hammer with outstanding durability and user ergonomics, while making it affordable for hobbyists and professional blacksmiths alike. This also means that expensive foundations are not required.

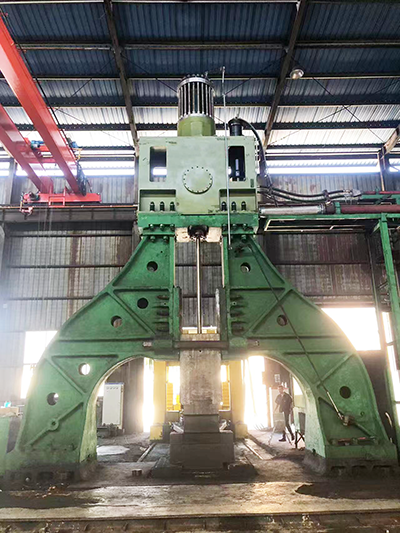

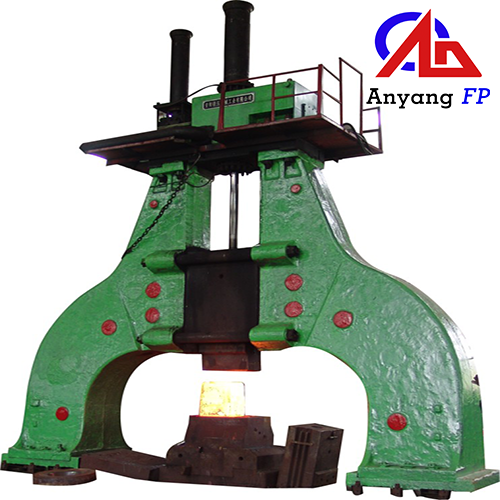

The double-arm (arch type) free forging electro-hydraulic hammer converts the potential energy of the hammer head into the kinetic energy of the hammer head, thereby striking the forging and performing work.

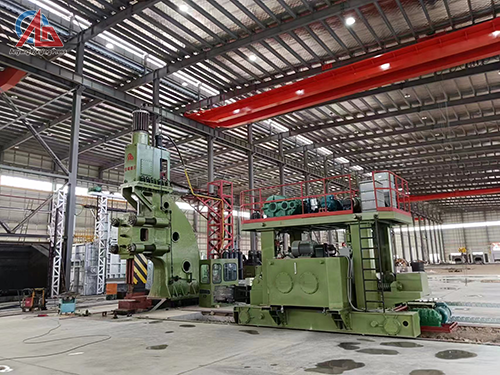

The Fully Hydraulic Open Die Forging Hammer has the advantages of sufficient energy, fast frequency, low failure rate, and can hover at any position. A Full Hydraulic Free Forging Hammer is suitable for producing various types of free forgings. Anyang Forging Company can also provide various kinds of forging manipulators.
